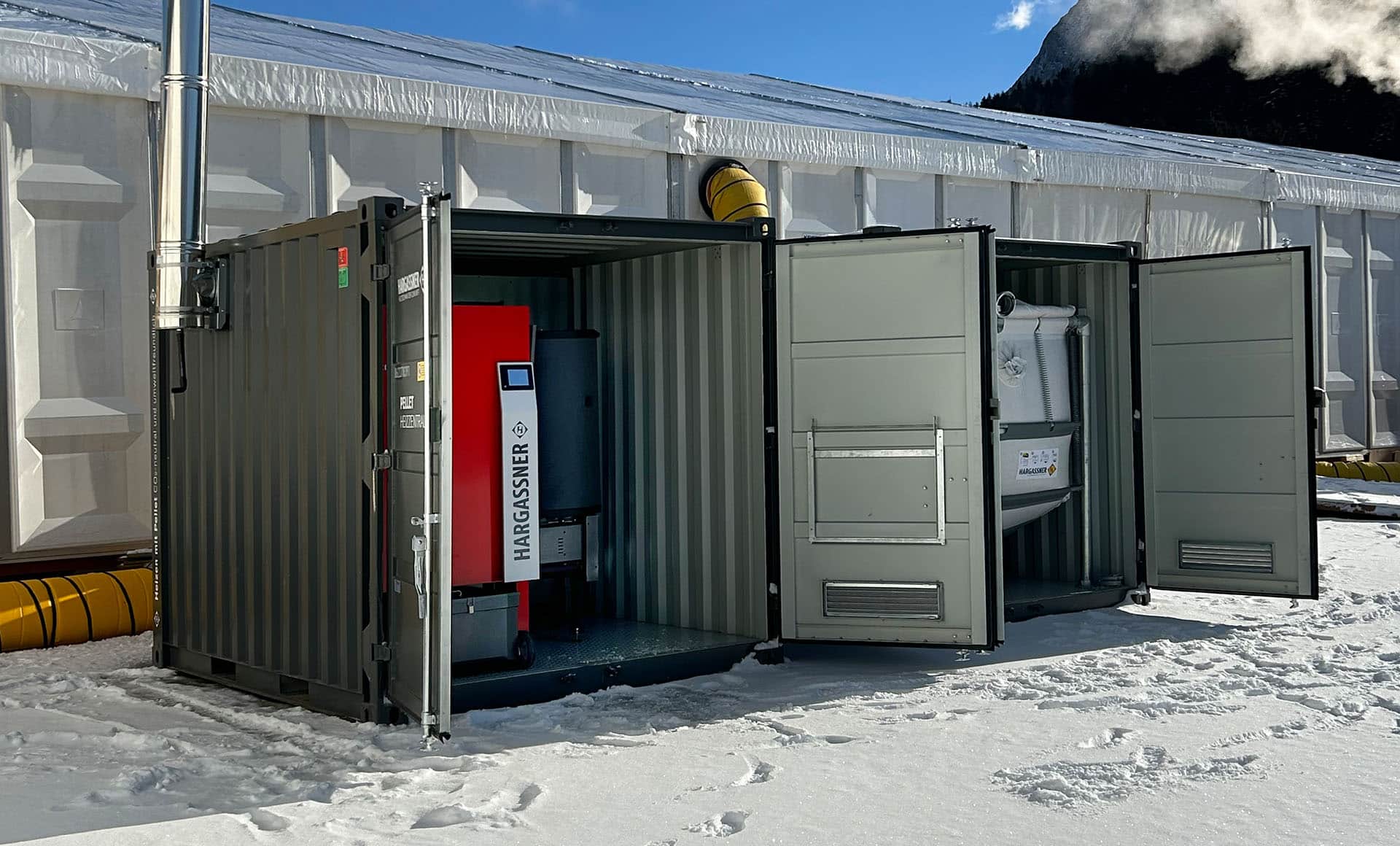

Powerbox 200 mit Pellets-Gewebetank zur Eventbeheizung | Hargassner

Heating module

Hargassner Power-Box

Efficient drying & heating

The Hargassner Power-Box is an efficient drying and heating system. The Power-Box is available with various outputs ranging from 100 – 220 kW and as a wood chip or pellet version.

It contains a Hargassner wood chip or pellet boiler that is water-based and ready to be connected. The boiler transfers its thermal energy to a large heat exchanger and a highly efficient centrifugal fan then generates the warm-air flow. Customers can therefore use their own fuel for low-cost drying, while the system is also climate-friendly and, thanks to the very economical water-based boiler, extremely efficient.

Another big advantage of the Power-Box is its mobility, which enables it to be used in the winter as a water- based heating system for residential buildings and barns, as a warm-air heating system for large tents or on building sites. Thanks to the freeze-proof features for water-based components, it is easily able to withstand outside temperatures as low as -18 degrees.

However, the boiler and warm-air heat exchanger can also be installed in fixed boiler rooms, which allows the total output to be increased up to 2,000 kW.

Download brochure

Gesamt-Heizsystem Power-Box | Hargassner

The Hargassner Power-Box is available in various models:

Efficient drying and heating:
The Hargassner Power-Box Air is an efficient drying and heating system that can be used for drying maize, cereals, hay or wood chips in the summer and for heating purposes in the winter. The Power-Box Small offers a more compact option with a power output of up to 120 kW.
Efficient heating:
The Hargassner Power-Box Heat is a powerful heating system in which a water-guided Hargassner boiler is installed ready to plug in. This transfers its thermal energy to an accumulator tank in the building.

Your Benefits

Power-Box

Compact design
Efficient drying & heating system
Very reliable & easy to maintain
High efficiency and minimum fuel consumption
Power range from 100 – 220 kW
Total output can be increased up to 2,000 kW in fixed boiler rooms
Remote monitoring possible with the app
Low current consumption levels:
thanks to a highly efficient speed-controlled radial fan

Safe system:
Warm-air flow is decoupled from the firing system
Dual usage:
System can also be used as a water-based heating system
Freeze-proof at temperatures down to -18 °C
Fully wired and ready to connect
Filling in container or silo
Operating hours meter / output meter for billing

Application areas

Ideal application

Power-Box Air &
Power-Box Small:

Efficient drying & heating
Drying of hay, maize, grain, wood chips
Event, festival and circus tents
Warehouses and commercial halls, greenhouses
Public construction sites, building drying

Power-Box Heat:

Efficient heating
Heating buildings

Efficient drying & heating

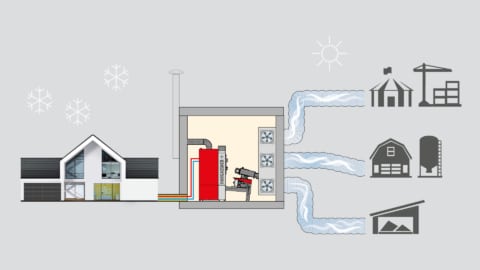

The Hargassner Power-Box is an efficient drying and heating system that can be used for drying maize, cereals, hay or wood
chips in the summer and for heating purposes in the winter.

Application areas:

Drying of hay, maize, grain, wood chips
Event, festival and circus tents
Warehouses and commercial halls, greenhouses
Public construction sites, building drying

For the 8′ and 10′ Power-Box models, a second container solution is required for fuel storage.

Power-Box Air 8' & 10'

Power range from 100 – 220 kW
Wood chip or pellet version
Freeze-proof at temperatures down to -18 °C
Dual usage:
System can also be used as a water-based heating system

Die kompakte Hargassne Power-Box Air eignet sich im Sommer zur Trocknung und im Winter als Heizung | Hargassner

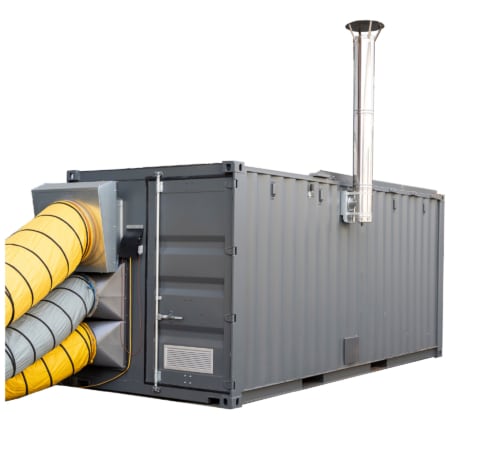

Power-Box Air 20'

Power range from 100 – 220 kW
Wood chip or pellet version
Freeze-proof at temperatures down to -18 °C
Dual usage:
System can also be used as a water-based heating system
Wood chip storage integrated
Including back-end protection

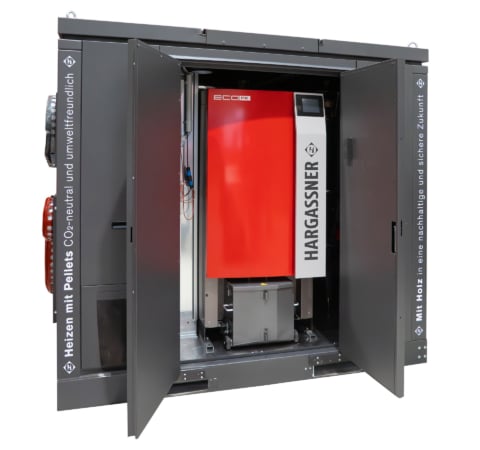

Power-Box Small 120

Pellet boiler Eco-PK 120 KW
Freeze-proof at temperatures down to -18 °C
Smaller, therefore easier to transport

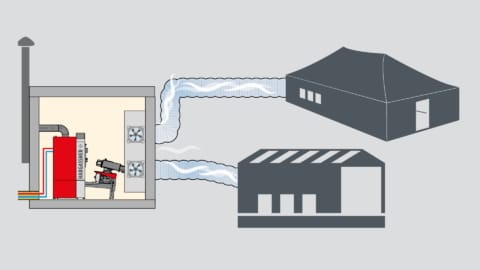

The powerful Power-Box Small is equipped with an Eco-PK 120 kW pellet boiler. This innovative solution combines efficiency and convenience in a compact design. The Power-Box also has an integrated warm-air module, which ensures even and pleasant heat distribution. The external storage room offers space for approx. 3 tonnes of pellets, so that you can heat independently and sustainably over a long period of time

Hargassner Power-Box Small für einen Leistungsbereich von 120 kW

Efficient heating

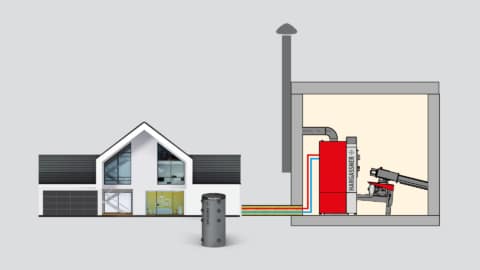

The Hargassner PowerBox Heat is a powerful heating system in which a water-guided Hargassner boiler is installed ready to plug in. This transfers its thermal energy to an accumulator tank in the building. Thanks to the freeze-proof features for water-based components, it is easily able to withstand outside temperatures as low as -18 degrees. The system components and boilers can also be integrated in stationary boiler rooms, so the total output can be extended to up to 2,000 kW.

For the 8′ and 10′ Power-Box models, a second container solution is required for fuel storage.

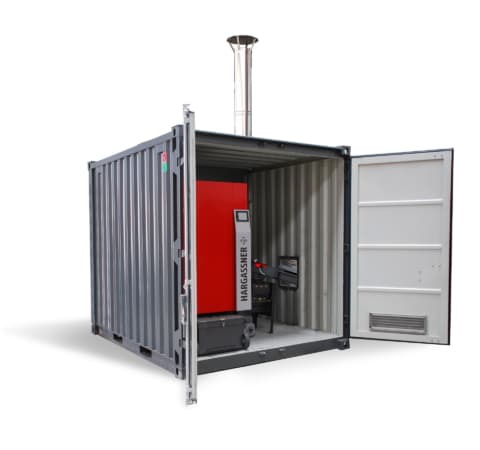

Power-Box Heat 8' & 10'

Power range from 100 – 220 kW
Wood chip or pellet version
Freeze-proof at temperatures down to -18 °C

Bei der Power-Box Heat wird die thermische Energie an einen Pufferspeicher im Gebäude abgegeben | Hargassner

Power-Box Heat 20'

Power range from 100 – 220 kW
Wood chip or pellet version
Freeze-proof at temperatures down to -18 °C
Automatic fuel detection
Wood chip storage integrated
Including back-end protection

Technische Daten

Power-Box Air & Heat 8' & 10'

for wood chip boiler Eco-HK and pellet boiler Eco-PK von 100 bis 220 kW

Type		100	120	150	170	200	220
Nominal heating output	kW	100	120	149	166	199	216
Fan air flow (free outlet, no back pressure)	m³/m	10,000	10,000	18,100	18,100	18,100	18,100
Fuel wood chips – EN ISO 17225-4	class	A1 to B1 P16 S – P31 S M10-35	A1 to B1 P16 S – P31 S M10-35	A1 to B1 P16 S – P31 S M10-35	A1 to B1 P16 S – P31 S M10-35	A1 to B1 P16 S – P31 S M10-35	A1 to B1 P16 S – P31 S M10-35
Fuel pellets – EN ISO 17225-2	class	A1	A1	A1	A1	A1	A1
Weight	kg	~2,200	~2,200	~3,300	~3,300	~3,400	~3,400
Container	feet	8′	8′	10′	10′	10′	10′
Length x Width x Height	m	2.44 x 2.2 x 2.2	2.44 x 2.2 x 2.2	2.99 x 2.44 x 2.6	2.99 x 2.44 x 2.6	2.99 x 2.44 x 2.6	2.99 x 2.44 x 2.6

Power-Box Air & Heat 20'

for wood chip boiler Eco-HK and pellet boiler Eco-PK von 100 bis 220 kW

Type		100	120	150	170	200	220
Nominal heating output	kW	100	120	149	166	199	216
Fan air flow (free outlet, no back pressure)	m³/m	10,000	10,000	18,100	18,100	18,100	18,100
Fuel wood chips – EN ISO 17225-4	class	A1 to B1 P16 S – P31 S M10-35	A1 to B1 P16 S – P31 S M10-35	A1 to B1 P16 S – P31 S M10-35	A1 to B1 P16 S – P31 S M10-35	A1 to B1 P16 S – P31 S M10-35	A1 to B1 P16 S – P31 S M10-35
Fuel pellets – EN ISO 17225-2	class	A1	A1	A1	A1	A1	A1
Weight	kg	~5,050	~5,050	~5,350	~5,350	~5,500	~5,500
Container	feet	20′	20′	20′	20′	20′	20′
Length x Width x Height	m	6.06 x 2.44 x 2.59	6.06 x 2.44 x 2.59	6.06 x 2.44 x 2.59	6.06 x 2.44 x 2.59	6.06 x 2.44 x 2.59	6.06 x 2.44 x 2.59

Power-Box Small 120

for pellet boiler Eco-PK 120 kW

Type		120
Nominal heating output	kW	120
Fan air flow (free outlet, no back pressure)	m³/m	10,000
Fuel pellets – EN ISO 17225-2	class	A1
Weight	kg	~2,200
Length x Width x Height	m	2.32 x 1.71 x 2.09
