Pellet storage system

Bag silo for outdoor installation

Outdoor Installation GWT

No space for a pellet storage room? We have the perfect solution for you in collaboration with our partner Biohort: “HighLine” tool shed with a pellet hose feed-through. This allows you to save space inside your home while securing additional storage capacity! Designed to complement our bag silos, the shed is available in three sizes. The Biohort shed stands out with its modern, timeless design, compact dimensions, variety of color options, its functionality, and, of course, its outstanding price-performance ratio.

Advantages

Outdoor installation GWT

Low acquisition costs, no modifications required
Pellet store & storage room combined in one solution
High-quality materials: galvanised, coated steel plate, stainless steel screws, and hinges
Integrated gutter with a 5/4-inch hose connection
Gutter with an integrated leaf traps on both sides
Comfortable door opening with gas spring and easy filling – double doors available (optional)
Maintenance-free for life

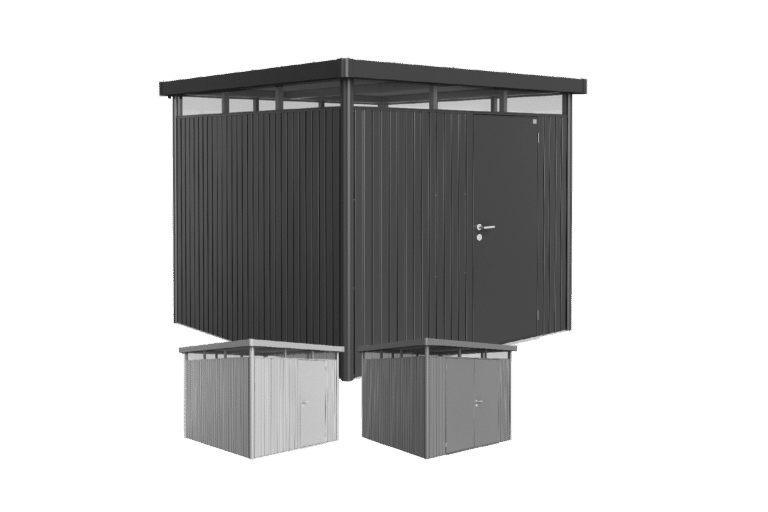

Available in three colors: metallic silver, metallic quartz grey, metallic dark grey (similar to anthracite)

Farben Gewebetank Aussenaufstellung Biohort - Pellet-Gerätehaus von Biohort

Installation with boiler at ground level

If the shed is at the same level as the boiler room, a 45° connection must be provided on-site. This setup is ideal for houses without a basement.

Concrete foundation (to be prepared on-site) according to the Biohort foundation plan
Aluminium floor frame and assembly service (optional) available via Biohort
45 ° integration at the foundation of the shed with a KG pipe DN160 to the boiler room (to be installed on-site)

GWT Aussenaufstellung - Aufstellvariante mit Kessel ebenerdig

Installation with boiler in the cellar

If the shed is one floor above than the boiler room, a 45° connection must be provided on-site. This setup is suitable for houses with a boiler room in the basement or if the boiler house is further away from the house (max. 20 m pellet hose length).

Concrete foundation (to be prepared on-site) according to the Biohort foundation plan
Aluminium floor frame and assembly service (optional) available via Biohort
45 ° integration of a KG pipe DN160 up to the boiler room (to be installed on-site)

GWT Aussenaufstellung - Aufstellvariante mit Kessel im Keller

Storage area: Bag silo for outdoor installation

Type	HighLine H4 (275 x 275 x 222cm)	HighLine H5 (275 x 315 x 222 cm)	HighLine H6 (315 x 315 x 222cm)
GWT-MAX 160 x 200	●	●	●
GWT-MAX 200 x 200	○	●	●
GWT-MAX 160 x 250		●	●
GWT-MAX 200 x 250		○	●
GWT-MAX 250 x 250			○

○ No storage area available ● Free space can be used for storage area

Technical data for bag silo for outdoor installation

Type	Filling weight	Width	Depth	Height
GWT-MAX 160 x 200	2.9 t	168 cm	208 cm	195 cm
GWT-MAX 200 x 200	3.6 tonnes	208 cm	208 cm	195 cm
GWT-MAX 160 x 250	3.6 tonnes	168 cm	258 cm	195 cm
GWT-MAX 200 x 250	4.4 tonnes	208 cm	258 cm	195 cm
GWT-MAX 250 x 250	5.6 tonnes	258 cm	258 cm	195 cm
