Wood Chip Boiler
Eco-HK
50–60 kW
170,000–204,000 BTU/h
The sum of top heating solutions.
- Unique step grate system
- Automatic fuel quality detection
- Cost-saving Eco mode
- Eco-control for lowest micro-dust levels
State-of-the-art wood chip heating technology
Heating system for the small and medium output range
Hargassner’s wood chip boilers are particularly suitable for farmers, single-family, and multi-family residences. Their outstanding efficiency ensures cost-effective heating.
Benefits: Eco-HK 50–60 kW
- Unique step grate system
- Highest efficiency
- Firebed level control with a lambda sensor
- Lambda sensor with fuel-quality detection
- Heat exchanger cleaning system (in 1st + 2nd pass)
- Energy-saving ignition: 300 W
- Z-form double rotary valve - 100% burn-back safety
- Exhaust fan (EC motor) with negative pressure monitoring
- Ash extraction for fly & grate ash
- No thermal safety circuit necessary
- Left & right boiler version (return lift always on the insertion side)
- User-friendly touch display
- Smart Home app
- 5 year warranty
- Energy efficiency class up to A++
- Integrated return lift (optional)
- Fully automatic ash extraction system (optional)
- Emergency operation with wood logs possible
Our boilers in detail
Specifics
of Eco-HK 50–60 kW
STRONG COMFORT IN STRONG 3D!
Discover the low wood chip output range in all-round comfort – simply move and zoom the Eco-HK 50–60 kW boiler in all directions as desired.
Experience this modern heating technology right now in your own future boiler room. With augmented reality, you can see into the future of your wood chip heating system with the AR button. Simply click the AR button and use your fingers to position, rotate and scale the boiler. You will already have an idea of how the Eco-HK 50–60 kW will fit perfectly into your room.

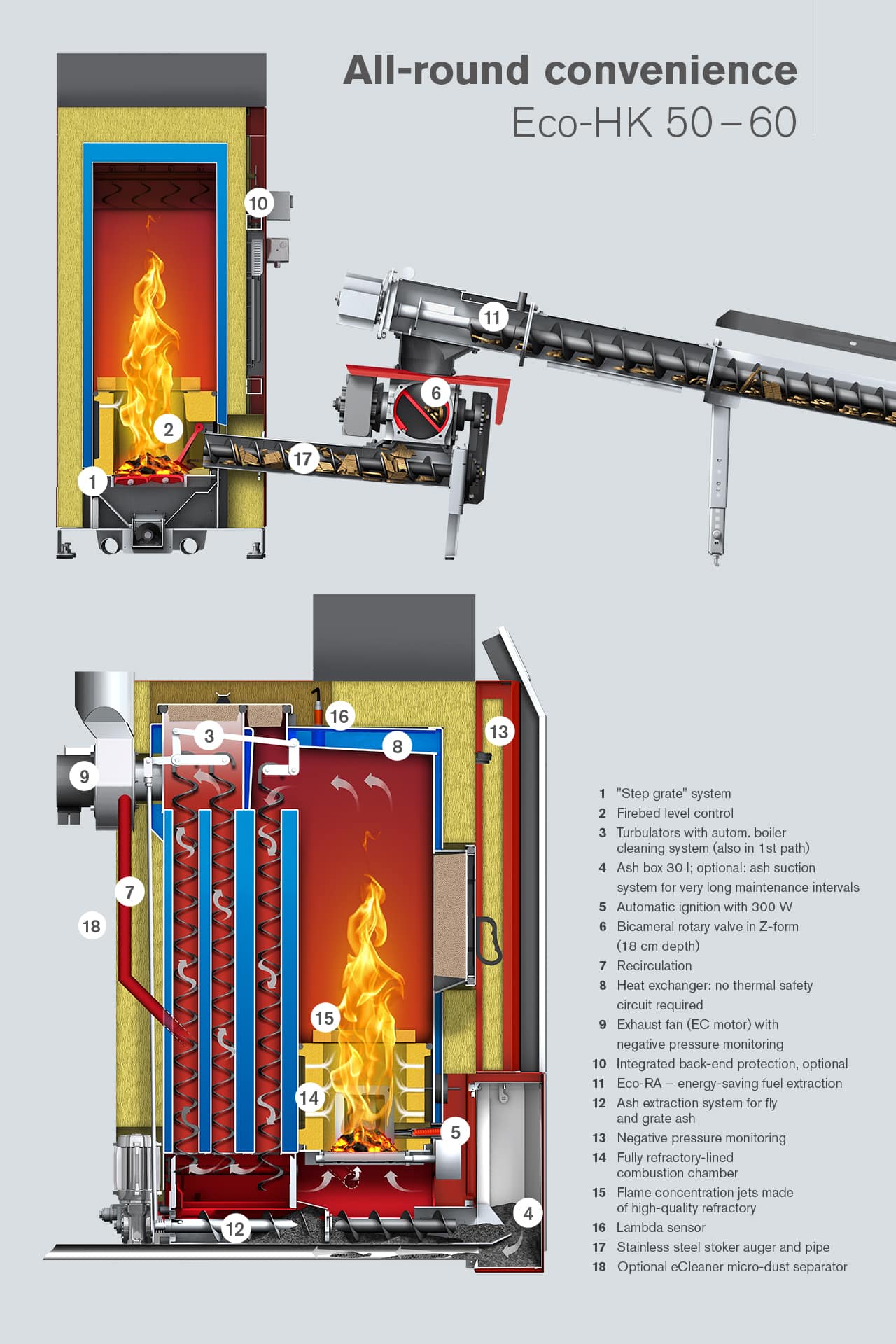

All technical details and important components await you in the following sectional view.
- Step grate system
- Firebed level control
- Turbulators with autom. boiler cleaning system (also in 1st pass)
- Ash box 30 l; optional: ash suction system for very long maintenance intervals
- Automatic ignition with 300 W
- Bicameral rotary valve in Z-form (18 cm depth)
- Recirculation integrated as standard
- Heat exchanger: no thermal safety circuit required
- Exhaust fan (EC motor) with negative pressure monitoring
- Integrated back-end protection, optional
- Eco-RA – energy-saving fuel extraction
- Ash extraction system for fly and grate ash
- Negative pressure monitoring
- Fully refractory-lined combustion chamber
- Flame concentration jets made of high-quality refractory
- Lambda sensor
- Stainless steel stoker auger and pipe
- Optional eCleaner micro-dust separator
Technical
details
NCV = Net Calorific Value | GCV = Gross Calorific Value
max. operation temperature 95 °C | max. operating pressure 3 bar | required back-end protection 58 °C | electrical supply 400 V AC, 50 Hz, 13 A fuse protection
*according to type test with test fuel
**without eCleaner / with eCleaner
***optional
