Heat Pump

Airflow-M
5–20 kW
COMFORT II

Compact hot water storage tank with two heat circuits
Energy rating: A++ / A+++

Download brochure
  • All-in-one complete solution
  • Space-saving & quick installation
  • Already integrated: One direct & one mixed heat circuit
  • 7" colour touch display

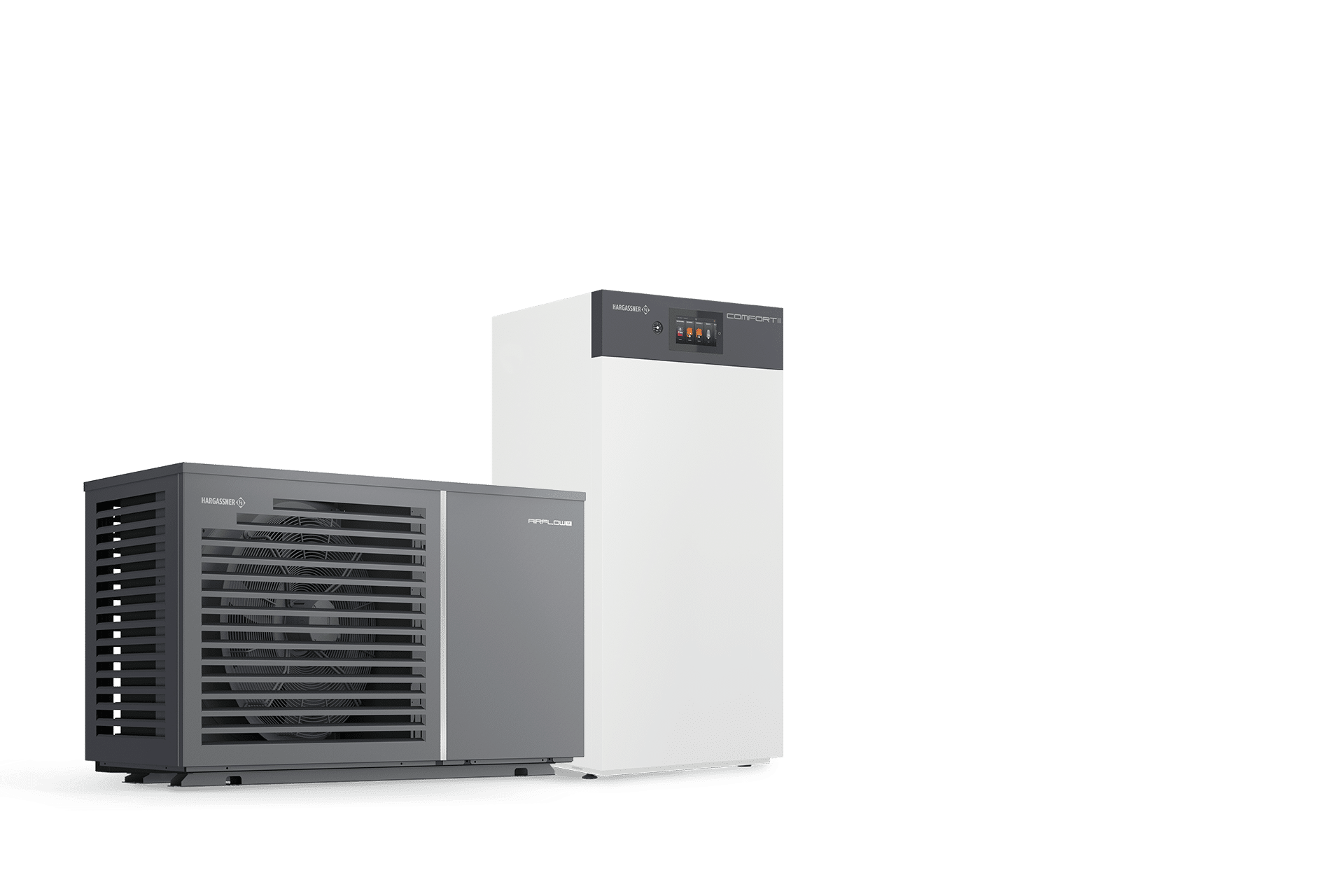

Heat pump COMFORT II

The all-in-one complete solution with a hot water storage tank and two heat circuits

With the “COMFORT II” indoor module, which takes over the central control unit of the entire heating system, you can rely on a compact complete solution with an integrated hot water tank including a sliding and a mixed heat circuit. Depending on the dimensions of the outdoor module, in which the entire cooling circuit with evaporator is located, the hot water tank is equipped with a capacity of 250 litres or 310 litres.

Note: Shipping of the Hargassner Airflow-M heat pump will start in February 2025.

Benefits:
Airflow-M COMFORT II

Download brochure
  • Copeland ScrollTM inverter compressor ensures broad capacity modulation
  • Environmentally friendly refrigerant R452B (GWP 676)
  • 7" colour touch display
  • Easy, intuitive operation: App & web app connection as well as smart home
  • Intelligent hybrid function enables perfect combinations
  • Efficient operation even at temperatures down to -25°C
  • Flow temperatures of up to 65°C possible
  • Heating and cooling operating modes as standard
  • Quick and easy installation
  • Modern, attractive design
  • Powder-coated aluminium housing ensures high weather resistance
  • Quiet operation according to EN 12102 with only 46 dB
  • Very good energy efficiency with a SCOP of up to 4.76
  • Energy efficiency rating up to A+++
Hydraulic components included in addition to the STYLE equipment: 3-way changeover valve, 250 / 310 litre hot water storage tank, storage tank protection anode, one direct & one mixed heat circuit

Our heat pump in detail

Specifics
of Airflow-M COMFORT II

Outdoor modules
heat pump
Airflow-M COMFORT II

For efficient heating and cooling of your home using a monobloc heat pump concept, you need two separate modules: an indoor module and an outdoor module, which is available with a power range of 5 to 20 kW. The latter includes the entire refrigerant circuit including evaporator, compressor, capacitor and expansion valve.
Our advanced 3D technology allows you to easily rotate and tilt our outdoor heat pump module to your desired position. With the help of augmented reality (AR), you can virtually place the heat pump in its future location and get a realistic impression of how it will look in your home.

Open 3D model in a new window

Indoor module
heat pump
Airflow-M COMFORT II

Using this indoor unit makes controlling your entire heating system – whether for heating purposes or for cooling during the summer months – extremely comfortable thanks to a large-format touch display. The COMFORT II floor-standing hydraulic module is equipped with a variety of functions and, in addition to the STYLE equipment (with integrated hydraulic components), includes an integrated hot water tank (with 250 l / 310 l), a storage tank protection anode and a direct and a mixed heating circuit.

Innenmodul Wärmepumpe Airflow-M COMFORT II 5-20 kW | Hargassner

Technical
details

Modulation range
Heating capacity at A-7W35*
Heating capacity at A-7W35*
SCOP at 35 / 55°C *
Efficiency of ETAs at 35 / 55°C *
Energy efficiency class at 35 / 55°C *
Sound power level normal / night **
Sound pressure level at a distance of 5m / 8m ***
Supply voltage
Supply voltage
Max. power consumption
Dimensions of outdoor unit
(W x H x D)
Dimensions of indoor unit
(W x H x D)
Weight outdoor unit / indoor unit
Hot water tank
kW
kW
kW
%
dB(A)
dB(A)
V / Hz
A
kW
mm
mm
kg
    AFM 5 – COMFORT II
    Modulation range 2 - 5 kW
    Heating capacity at A-7W35* 4.98 kW
    Heating capacity at A-7W55* 4.77 kW
    SCOP at 35 / 55°C * 4.09 / 3.25
    Efficiency ETAs at 35 / 55°C * 160.5 / 127.1 %
    Energy efficiency class at 35 / 55°C * A++ / A++
    Sound power level normal / night ** 54 / 51 dB(A)
    Sound pressure level at 5m / 8m distance *** 32/ 28 dB(A)
    Supply voltage 230 / 50 V / Hz
    Connection current 15 A
    Max. power consumption 5.32 kW
    Dimensions of outdoor unit
    (W x H x D)     1150 x 860 x 515 mm
    Dimensions of indoor unit
    (W x H x D)     695 x 1535 x 900 mm
    Weight of outdoor unit / indoor unit 129 / 205 kg
    Hot water tank 250
    AFM 7 – COMFORT II
    Modulation range 2 - 7 kW
    Heating capacity at A-7W35* 5.42 kW
    Heating capacity at A-7W55* 5.18 kW
    SCOP at 35 / 55°C * 4.12 / 3.23
    Efficiency ETAs at 35 / 55°C * 161.8 / 126 %
    Energy efficiency class at 35 / 55°C * A++ / A++
    Sound power level normal / night ** 55 / 52 dB(A)
    Sound pressure level at 5m / 8m distance *** 33 / 29 dB(A)
    Supply voltage 230 / 50 V / Hz
    Connection current 15 A
    Max. power consumption 5.32 kW
    Dimensions of outdoor unit
    (W x H x D)     1150 x 860 x 515 mm
    Dimensions of indoor unit
    (W x H x D)     695 x 1535 x 900 mm
    Weight of outdoor unit / indoor unit 129 / 205 kg
    Hot water tank 250
    AFM 9 – COMFORT II
    Modulation range 2 - 9 kW
    Heating capacity at A-7W35* 6.62 kW
    Heating capacity at A-7W55* 6.45 kW
    SCOP at 35 / 55°C * 4.21 / 3.34
    Efficiency ETAs at 35 / 55°C * 165.5 / 130.6 %
    Energy efficiency class at 35 / 55°C * A++ / A++
    Sound power level normal / night ** 46 / 43 dB(A)
    Sound pressure level at 5m / 8m distance *** 24 / 20 dB(A)
    Supply voltage 230 / 50 V / Hz
    Connection current 15 A
    Max. power consumption 5.32 kW
    Dimensions of outdoor unit
    (W x H x D)     1390 x 860 x 590 mm
    Dimensions of indoor unit
    (W x H x D)     695 x 1535 x 900 mm
    Weight of outdoor unit / indoor unit 148 / 205 kg
    Hot water tank 250
    AFM 12 – COMFORT II
    Modulation range 3 - 12 kW
    Heating capacity at A-7W35* 7.89 kW
    Heating capacity at A-7W55* 7.79 kW
    SCOP at 35 / 55°C * 4.20 / 3.54
    Efficiency ETAs at 35 / 55°C * 165.1 / 138.7 %
    Energy efficiency class at 35 / 55°C * A++ / A++
    Sound power level normal / night ** 48 / 45 dB(A)
    Sound pressure level at 5m / 8m distance *** 26 / 22 dB(A)
    Supply voltage 400 / 50 V / Hz
    Connection current 3 x 12 A
    Max. power consumption 7.4 kW
    Dimensions of outdoor unit
    (W x H x D)     1390 x 860 x 590 mm
    Dimensions of indoor unit
    (W x H x D)     695 x 1535 x 900 mm
    Weight of outdoor unit / indoor unit 148 / 205 kg
    Hot water tank 250
    AFM 14 – COMFORT II
    Modulation range 4 - 14 kW
    Heating capacity at A-7W35* 9.57 kW
    Heating capacity at A-7W55* 9.33 kW
    SCOP at 35 / 55°C * 4.73 / 3.38
    Efficiency ETAs at 35 / 55°C * 186.1 / 132.2 %
    Energy efficiency class at 35 / 55°C * A+++ / A++
    Sound power level normal / night ** 50 / 47 dB(A)
    Sound pressure level at 5m / 8m distance *** 28 / 24 dB(A)
    Supply voltage 400 / 50 V / Hz
    Connection current 3 x 12 A
    Max. power consumption 7.4 kW
    Dimensions of outdoor unit
    (W x H x D)     1350 x 1505 x 585 mm
    Dimensions of indoor unit
    (W x H x D)     695 x 1770 x 900 mm
    Weight of outdoor unit / indoor unit 210 / 265 kg
    Hot water tank 310
    AFM 16 – COMFORT II
    Modulation range 5 - 16 kW
    Heating capacity at A-7W35* 12.05 kW
    Heating capacity at A-7W55* 11.95 kW
    SCOP at 35 / 55°C * 4.76 / 3.41
    Efficiency ETAs at 35 / 55°C * 187.2 / 133.5 %
    Energy efficiency class at 35 / 55°C * A+++ / A++
    Sound power level normal / night ** 52 / 49 dB(A)
    Sound pressure level at 5m / 8m distance *** 30 / 26 dB(A)
    Supply voltage 400 / 50 V / Hz
    Connection current 3 x 12 A
    Max. power consumption 7.4 kW
    Dimensions of outdoor unit
    (W x H x D)     1350 x 1505 x 585 mm
    Dimensions of indoor unit
    (W x H x D)     695 x 1770 x 900 mm
    Weight of outdoor unit / indoor unit 212 / 265 kg
    Hot water tank 310
    AFM 18 – COMFORT II
    Modulation range 5 - 18 kW
    Heating capacity at A-7W35* 13.01 kW
    Heating capacity at A-7W55* 12.87 kW
    SCOP at 35 / 55°C * 4.71 / 3.35
    Efficiency ETAs at 35 / 55°C * 185.2 / 131.0 %
    Energy efficiency class at 35 / 55°C * A+++ / A++
    Sound power level normal / night ** 53 / 50 dB(A)
    Sound pressure level at 5m / 8m distance *** 31 / 27 dB(A)
    Supply voltage 400 / 50 V / Hz
    Connection current 3 x 12 A
    Max. power consumption 7.4 kW
    Dimensions of outdoor unit
    (W x H x D)     1350 x 1505 x 585 mm
    Dimensions of indoor unit
    (W x H x D)     695 x 1770 x 900 mm
    Weight of outdoor unit / indoor unit 212 / 265 kg
    Hot water tank 310
    AFM 20 – COMFORT II
    Modulation range 5 - 20 kW
    Heating capacity at A-7W35* 13.78 kW
    Heating capacity at A-7W55* 13.65 kW
    SCOP at 35 / 55°C * 4.69 / 3.23
    Efficiency ETAs at 35 / 55°C * 184.4 / 126.3 %
    Energy efficiency class at 35 / 55°C * A+++ / A++
    Sound power level normal / night ** 54 / 51 dB(A)
    Sound pressure level at 5m / 8m distance *** 32 / 28 dB(A)
    Supply voltage 400 / 50 V / Hz
    Connection current 3 x 12 A
    Max. power consumption 7.4 kW
    Dimensions of outdoor unit
    (W x H x D)     1350 x 1505 x 585 mm
    Dimensions of indoor unit
    (W x H x D)     695 x 1770 x 900 mm
    Weight of outdoor unit / indoor unit 212 / 265 kg
    Hot water tank 310

    *according to EN 14511 (medium climate) **according to EN 12102 ***Free field installation
