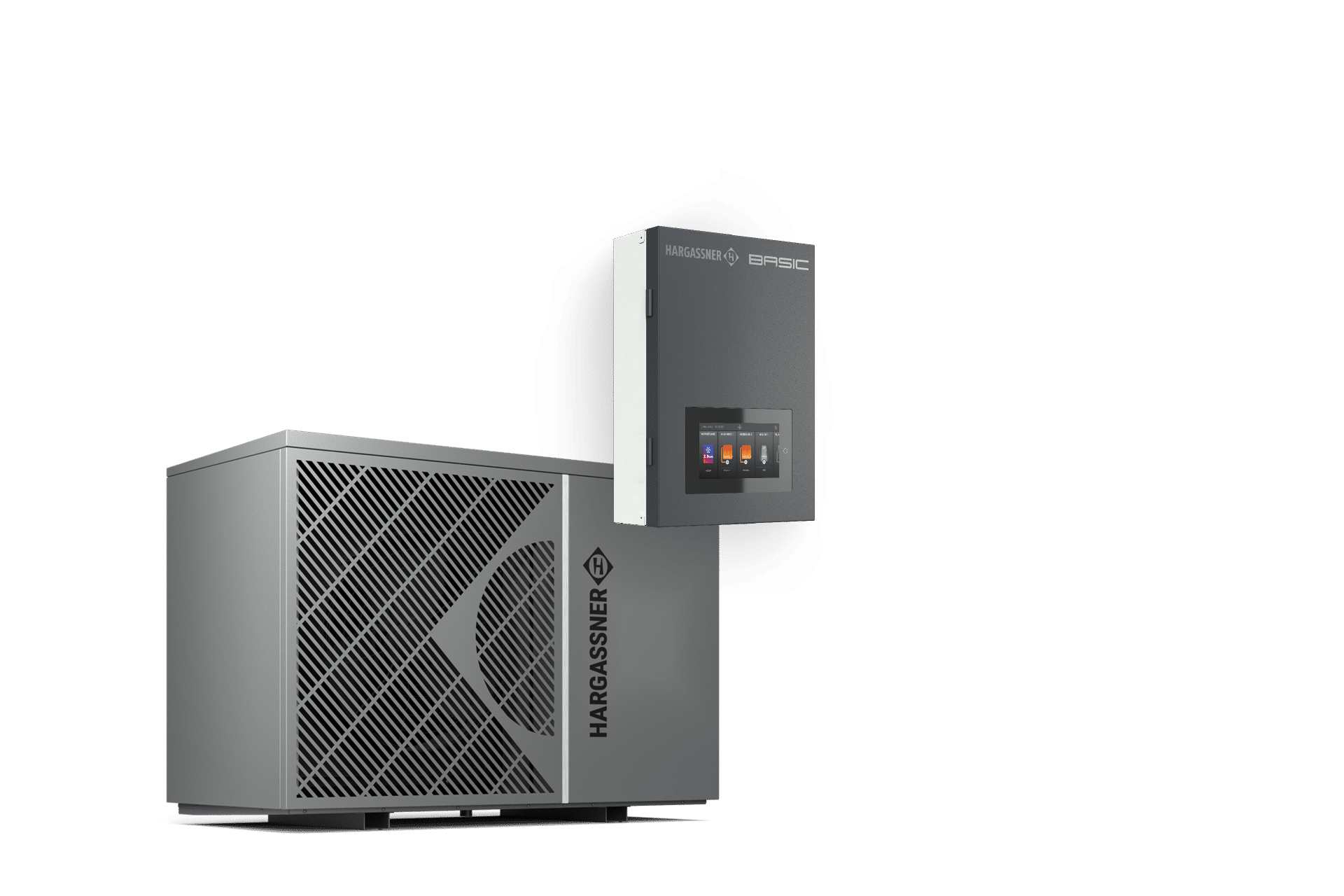

AirPro BASIC 2-20 propane heat pump | Hargassner

Heat Pump

AirPro
2-20 kW
BASIC

Propane heat pump
Space-saving & intuitive
Energy efficiency class A+++

Download brochure
  • Ideal for existing systems
  • Modules can be positioned flexibly
  • Centralised control of the system
  • 7" color touch display
  • Intelligent hybrid function


Propane heat pump BASIC

Intuitive, infinitely variable control unit for your heat pump

With the indoor module in the “BASIC” version, operating and controlling your heating system is simple and intuitive. With the AirPro monobloc heat pump, the complete refrigerant circuit is located in the outdoor unit, which makes installation easier. The indoor module controls both the heating and cooling of the rooms as well as the domestic hot water preparation.

Benefits:
AirPro BASIC

Download brochure
  • Copeland ScrollTM inverter compressor with wide capacity modulation
  • Natural refrigerant R290 (GWP 0.02)
  • 7" colour touchscreen display
  • Easy operation: App & web application and smart home
  • Intelligent integration of additional heat generators through the hybrid function
  • Effective operation down to -28°C
  • Up to 75°C flow temperature possible
  • Heating and cooling as standard
  • Simple, space and time-saving installation
  • Timeless & modern design
  • Quality for decades: galvanised, powder-coated metal housing
  • Quiet operation with only 39 dB(A)
  • High energy efficiency with SCOP values above 5
  • High energy‑efficiency class up to A+++
Included in the scope of delivery: Infinitely variable high-efficiency pump, outdoor temperature sensor, flow sensor, condensate heating cable

Our heat pump in detail

Specifics
of AirPro BASIC

Outdoor unit
Heat pump
AirPro BASIC

For a reliable and efficient energy supply in the home, a monobloc heat pump system always consists of two units: an indoor module and an outdoor module, which contains the complete refrigerant circuit and is available in output sizes from 2 to 20 kW.

Thanks to innovative technologies, the outdoor unit is particularly quiet – including owl-wing fan blades, triple sound and vibration decoupling and special sound insulation. At the same time, the large evaporator surface ensures high efficiency and stable performance even at low temperatures.

A ready-made foundation is available as an accessory for the AirPro 207 and AirPro 310: simply fill with gravel – no concrete work required!

3D illustration: AirPro 207 model

Open 3D model in a new window

Indoor unit
Heat pump
AirPro BASIC

This indoor unit enables intuitive operation of the entire system – both in heating and cooling mode. The wall-mounted BASIC module with large touch display can be flexibly positioned in the room and is therefore also ideal for existing systems.

Additional functions such as an integrated hybrid control, the integration of a PV system or the heating of a pool in summer significantly expand the range of applications. Thanks to the use of current online weather data and variable energy prices, the system is also particularly efficient and economical.

Innenmodul Wärmepumpe Airflow-M BASIC 5-20 kW | Hargassner

Technical
details

    AirPro 207 – BASIC
    2 - 7
    5.42
    4.86
    5.00 / 3.61
    197 / 141.6
    A+++ / A++
    39.4
    230 / 50
    3.6
    1505 x 1015 x 715
    315 x 450 x 132
    241 / 8.2
    -
    AirPro 310 – BASIC
    3 - 10
    8.55
    8.44
    5.07 / 4.08
    199.8 / 160.2
    A+++
    39.4
    230 / 50 | 400 / 50
    230: 5.36 | 400: 5.19
    1605 x 1115 x 715
    315 x 450 x 132
    230V: 266 / 8,2 | 400V: 276 / 8,2
    -
    AirPro 515 – BASIC
    5 - 15
    12.91
    12.33
    5.21 / 3.98
    205.3 / 156.1
    A+++
    40.6
    400 / 50
    8.01
    1705 x 1370 x 905
    315 x 450 x 132
    350 / 8.2
    -
    AirPro 620 – BASIC
    6 - 20
    16.15
    15.97
    5.34 / 4.09
    210.4 / 160.7
    A+++
    40.3
    400 / 50
    10.85
    1955 × 1475 × 905
    315 x 450 x 132
    401 / 8.2
    -

    *according to EN 14825 (medium climate)
